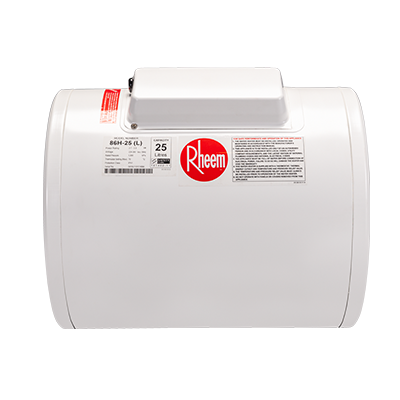

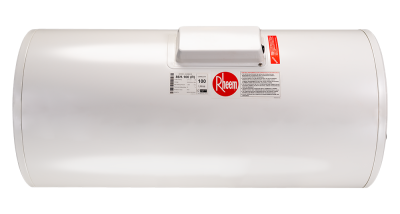

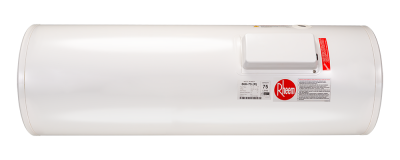

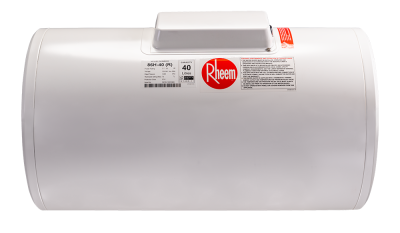

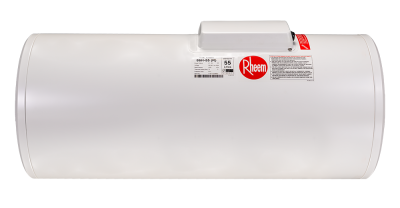

RHEEM EH Classic Electric Storage Water Heater
Specifications:
- Heater tank solid, long proven in millions of installation worldwide
- Insulation protection with CFC free polyurethane foam and epoxy colour bond jacket
- Cathodic protection with magnesium anode rod
- Incoloy 800 immersion type heating element provided
- Wall hung installation mounted bracket provided
- Dual thermal control with surface mounted on inner tank
- Temperature and pressure relief valve with highest protection against pressure built up
| Model | EH-25M | EH-40M | EH-55M | EH-75M | EH-100M | |
| Capacity (Litres) | 25 | 40 | 55 | 75 | 100 | |
| Mounting | Horizontal | |||||
| Heating Element Input (kW) (240V) | 3.0 | |||||
| Shipping Weight | 17 | 22 | 25 | 31 | 36 | |
| Operating Weight (Kg) | 42 | 62 | 80 | 106 | 136 | |
| Heater Dimension(mm) | Diameter | 370 | 370 | 370 | 370 | 458 |
| Length | 450 | 655 | 790 | 1130 | 962 | |
| Preset Temperature (°C) | 65 | |||||
| Approx*. Heat up Time to 65°C (mins) | 23 | 37 | 50 | 69 | 92 | |
*Heat up time is calculated based on a 3kW, incoming temperature of 25°C. All connections in 3/4"BSP Thread
