Cooker Hood CC 485
40cm Tubular Island Hood Design With Touch Control And ECOPOWER Motor
Description
- Tubular Island Hood
- ECOPOWER Motor
- Energy Efficiency Class: A
- Touch Control Panel
- White Digital Display
- 3 Speeds + 1 Intensive

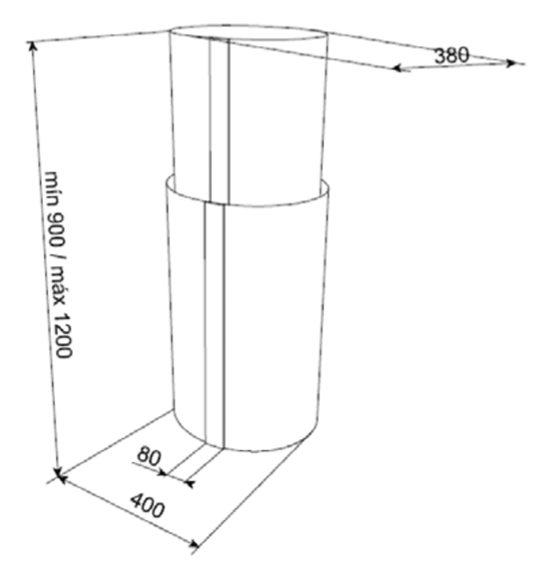

- Dimension: W400 x H815-1115 x D400mm
- Exhaust Capacities:
- Max Exhaust, M³/H: 1200
- Free Outlet, M³/H: 920
- Qboost, M³/H: 771
- Max., M³/H: 525
- Min., M³/H: 305
- Noise (Lwa) Boost Speed, db: 78
- Noise (Lwa) Max Speed, db: 72
- Noise (Lwa) Min Speed, db: 50
- 2 LED Lamps
- 1 Stainless Steel Filter
- Stop Delay Timer
- Filter Saturation Indicator
Technical Details
Interior measurements
- Inner Height (mm): 1200
General measures
- Product height (mm): 900-1200
- Product width (mm): 400
- Product depth (mm): 400
- Net weight (Kg): 21.5
Particular characteristics
- Certificates: CE; CB
- Ø Outlet (mm): 150
- Inside light Consumption (W): 3
- Plug type: European plug
- Power rate (V): 220240
- Frequency (Hz): 50
- Total hood power (W): 286
- Number of motors: 1
- Motor power (W): 280
EU Regulation No. 65/2014 &66/2104
- Annual energy consumption AEC kWh/annum (kWh): 44,7
- Energy Efficiency Class: A
- Fluid Dynamic Efficiency (FDEhood): 32,2
- Fluid Dynamic Efficiency class: A
- Light Efficiency (Lehood) lux/Watt: 87,3
- Lighting Efficiency class: A
- Grease Filtering Efficiency class: C
- Air flow (Qmin) m3/h: 305
- Air flow (Qmax): 525
- Air flow (Qboost): 771
- Noise (LwA) Min Speed (dB): 50
- Noise (LwA) Max Speed (dB): 72
- Noise (LwA) boost speed (dB): 78
- Off mode Power (Po) W: 0,00
- Standby Power (Ps) W: 0,74
- Energy Efficiency Index (EEI): 47,3
- Time increase factor: 0,8
- Air pressure at best efficiency point(Pbep) Pa: 465
- Electric power input at best efficiency point (Wbep) W: 138,2
- Nominal power of the lighting system (WL) W: 6
- Average illumination of the lighting system on the cooking surface (Emiddle) Lux: 524
Accessories
- Anti Return valve: Yes
- Outlet reduction: Yes
Models
- Number of filters: 1
- Stop delay timer: Yes
- Filter saturation indicator: Yes
- Number of speeds: 3+1
